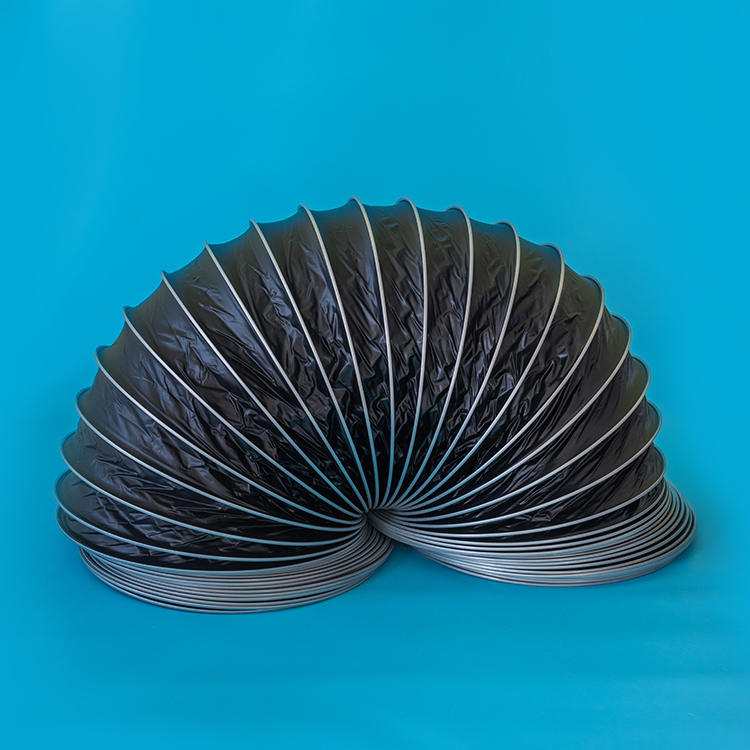

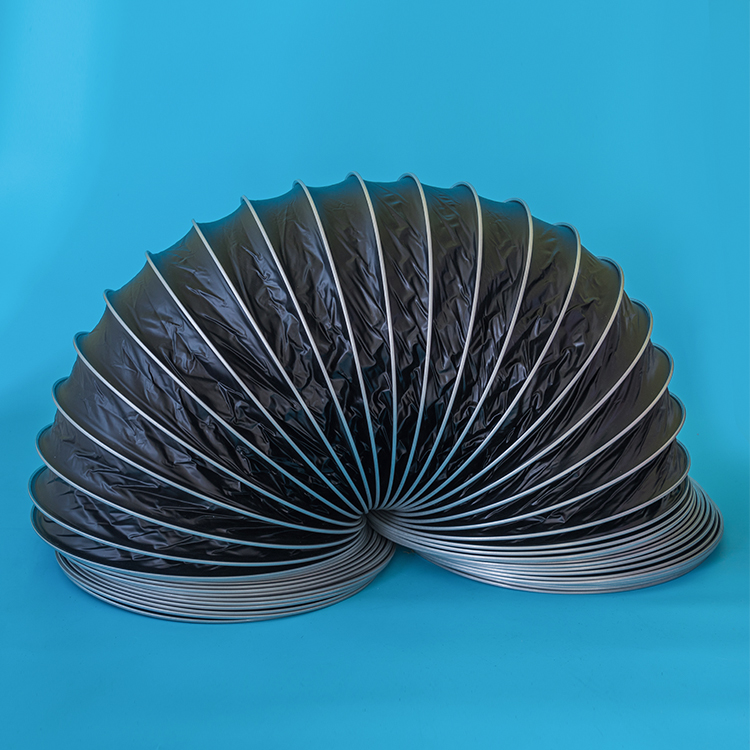

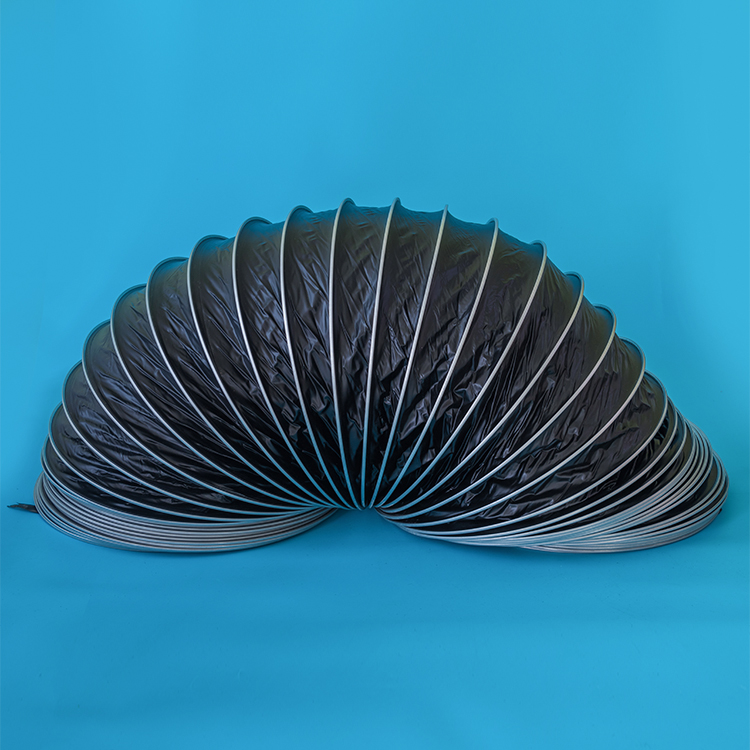

Reinforced PVC Flexible Duct
夾布PVC軟管
|
Product Code |
XY-107 |
產品編碼 |
XY-107 |
||
|
Construction |
1 PVC film |
材料 |
1層PVC |
||
|
Color |
White/Black/Grey |
顏色 |
白色/黑色/灰色 |
||
|
AvailableDiameter |
100mm-650mm (4"-25") |
直徑範圍 |
100mm-650mm (4"-25") |
||
|
Steel Wire |
Material |
Galvanized Iron |
鋼絲 |
材質 |
鍍鋅鐵皮 |
|
Diameter |
12mm |
直徑 |
12mm |
||
|
Thickness |
0.4mm |
厚度 |
0.4mm |
||
|
StandardLength |
10m(Max) |
標準長度 |
10m(Max) |
||
|
Thickness |
0.07mm-0.10mm |
厚度 |
0.07mm-0.10mm |
||
|
Fire Resistance |
Class A2(Max) |
防火等級 |
A2級，難燃 |
||
|
CompressRatio |
1:15 |
壓縮比 |
1：15 |
||
|
Temperature Range |
-20℃/+80℃ |
溫度範圍 |
-20℃/+80℃ |
||
|
Operating Pressure |
3000Pa |
最大壓力 |
3000Pa |
||
|
Maximum Air Velocity |
最大風速 |
30m/s |
|||
PVC伸縮軟管采用PVC膜複合膜繞帖高彈性螺旋形強韌鋼絲製作而成。
拉直後自持性好、風阻小、清潔衛生，遇到高溫或火警時，不產生有毒氣體，適用於高、中、低壓的空調及通風係統，安裝便捷。
Made of spiral steel wire laminated with PVC film.
Self-holding during usage and low wind resistance.
No toxic gases release at high temperature or in the case of fire alarm.
Ideal for using in general purpose exhaust applications.
